Keiko4GX
| General specifications | |
|---|---|

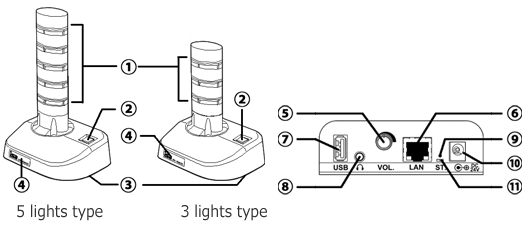

| Body appearance |
|
 ① strong illuminating LED lights ② stop button (and power indicator) ③ speaker unit ④ grade label (wine red) ⑤ volume control for speaker output ⑥ wired LAN (gigabit) ⑦ USB port forWi-Fi module only ⑧ headphone output ⑨ reset button ⑩ power connector for DC24V ⑪ status light (LED) |
|
| LED color | (5 light type) red, yellow, blue, green, white (3 light type) red, yellow, green |

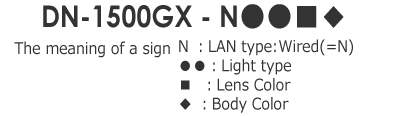

| Model No. |  | |||
|---|---|---|---|---|
| 5 light type | ||||
| 5 layer (  =5L) |
Lens Color( ="C"or"S") |
|||
| Color(=C) |
Skeleton(=S) |
|||
Body Color( ="B"or"W")
| ||||
Dark gray( =B) |
Light gray( =W) |
|||
|
 |
 |
|
|
| Model No. | LAN type:Wired(=N) | |||
| DN-1500GX-N5LCB | DN-1500GX-N5LCW | DN-1500GX-N5LSB | DN-1500GX-N5LSW | |
| Model dimension(inches) | 6.3W x 4.92D x 10.63H (part of lights : 2.36Φ x 1.57Φ x 8.66H) | |||
| Weight (lb.) |  *AC adapter not included. |
|||
| 3 light type | ||||
| 3 layer ( =3L) |
Lens Color(="C"or"S") |
|||
| Color(=C) |
Skeleton(=S) |
|||
| Body Color(="B"or"W")
| ||||
Dark gray( =B) |
Light gray( =W) |
|||
 |
|
|
 |
|
| Model No. | LAN type:Wired(=N) | |||
| DN-1500GX-N3LCB | DN-1500GX-N3LCW | DN-1500GX-N3LSB | DN-1500GX-N3LSW | |
| Model dimension(in) | 6.3W x 4.92D x 8.27H (part of lights : 2.36Φ x 1.57Φ x 6.3H) | |||
| Weight (lb.) | *AC adapter not included. |
|||
| Other specifications | ||
|---|---|---|
| MPU | 32bit 1.2GHz ARM architecture | |
| Lights | lights on, off, flashing (30, 60 times / m) | |
| Audio output | 1.5W built-in speaker (0-88dB) 1ch,3.5 mmΦ audio mini jack(Stereo,16Ω,46mW) |
|
| Audio file | maximum 20 MPEG3 files / backup / playback restore(up to 10MB) | |
| Buzzer | 2 type of sound(P-,P-,P-,35 times / m, PPPP.., 700 times / m) 3.3kHz | |
| Wired LAN | Gigabit Ethernet(auto-negotiation 10BASE-T, 100BASE-TX, the 1000BASE-T) LED indicator (link status, speed) |
|
| Wireless LAN | compliant Wi-Fi, IEEE802.11 b / g / n Security: Open System, WEP (64/128bit), WPA/WPA-2-PSK (TKIP / ASE) |
|
| DHCP | support protocol Both wireless LAN / wired: IP address, subnet mask, gateway address, DNS server address |
|
| USB | USB 2.0(only for Wi-Fi optional module) | |
| Security | Cipher : AES, DES, 3DES Authentication : SHA1, MD5 |
|
| IP Network | IPv6 / IPv4 dual stack | |
| Supported Protocols | ARP, HTTP, ICMP, RSH, NTP, SMTP, SNMP(v1 / v2c / v3), TCP/IP, UDP | |
| Configuration system | through web browser | |
| Calendar / Clock | capacitor backup | |
| Alarm reset button | turn off lights, buzzer, indicates power | |
| operational conditions | Temperature : 0 - 45 °C Humidity : 20% - 85% RH(non-condensing) Elevation : below 3,000 m |
|
| AC adapter |
body dedicated productsdimensions (mm): 46W x 34D x 25H input voltage : 100 -240VAC , 50/60Hz output voltage : 24VDC 0.5A weight: approx. 1/4 cable length: approx. 1600mm | |
| Power consumption | max 10W(All 5lights, buzzer, wireless LAN, voice output)/ 4W (standby) | |
| EMC | FCC Part15 - ClassA CISPR 22/EN55022 - ClassA |
|
| Environmental Standards | RoHS Compliance | |
| Warranty period | 90 days after shipment | |
